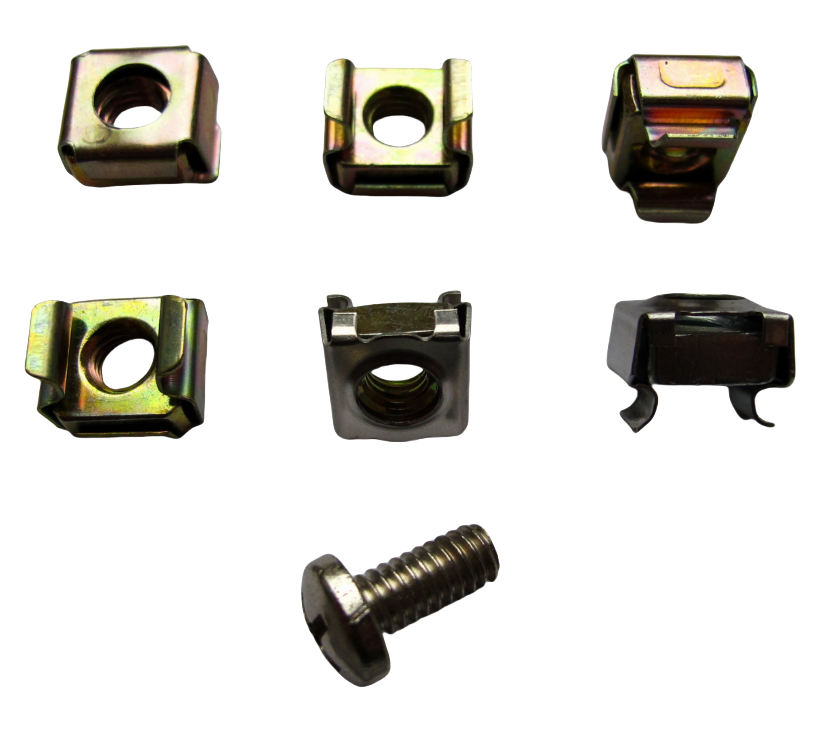

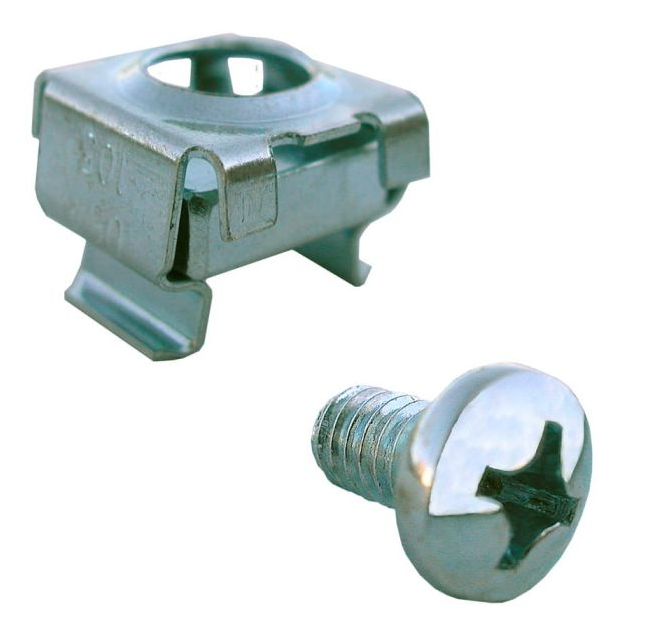

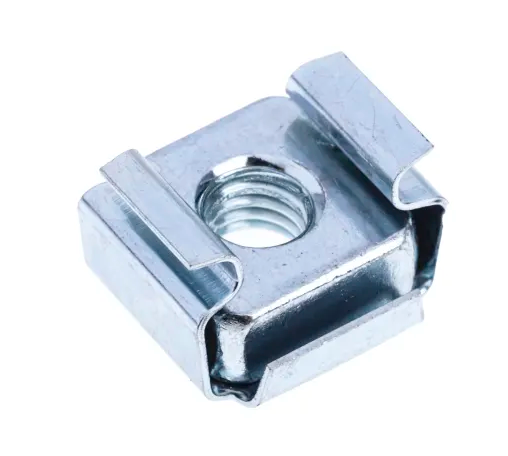

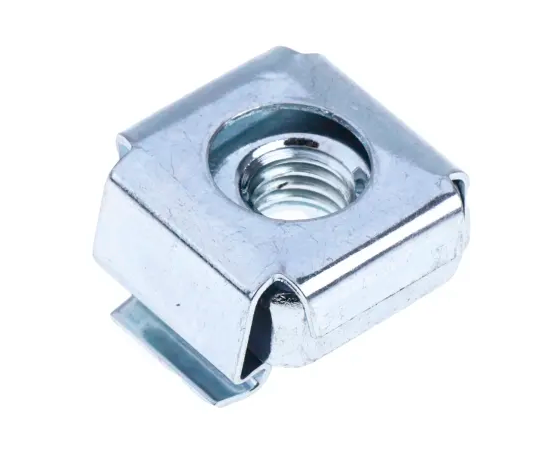

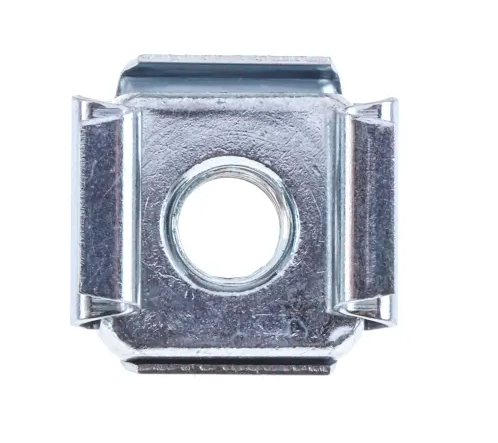

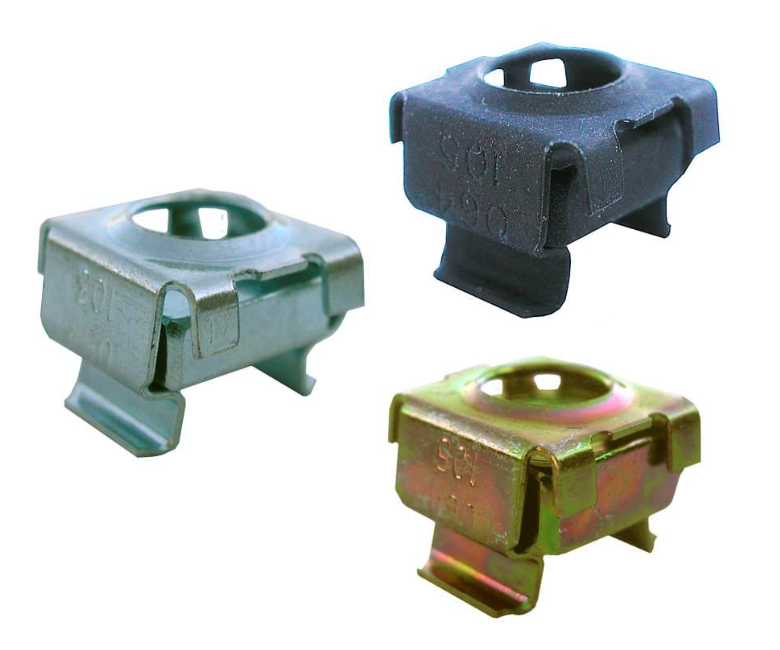

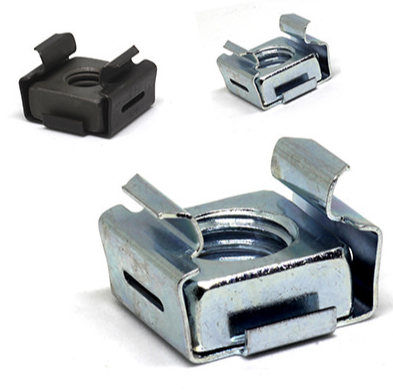

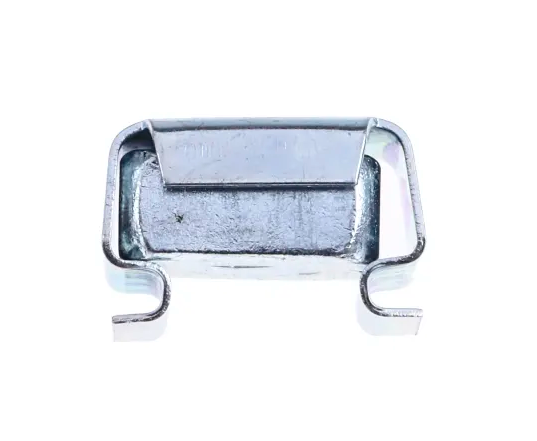

Cage nut, YJT 3031
1. Material:Carbon stell, Stainless steel
SS304, SS316, SS316L, SS201, SS410
2. Grade: A2-70, A4-70, A4-80
3. SIZE: M3 to M24
4. Standard: YJT 3031
1. Material: Carbon stell,Q195,Q235,35K,45K, Stainless steelSS304, SS316, SS316L, SS201, SS410
2. Grade:4,6,8,10, Class 2,5,8. A2-70, A4-70, A4-80
3. SIZE: M3 to M24
4. Standard: YJT 3031
Cage Nut YJT 3031:
| SCREW SIZE | P | F | S | G | B | J | N | K | |
|---|---|---|---|---|---|---|---|---|---|
| Panel Thickness | See Above | Emboss Squre | Mounting Hole | Gage Width | Panel to Cage | Flange Lip | Cage Height | ||
| Nominal | Min. | Nominal | |||||||
| M6-1.0 | 0.635-1.600 | 2.54 | 13.49 | A or B | 13.21 | 6.35 | 1.52 | 4.32 | |
Dimensions in mm
Specification Requirements:
Dimensions: See dimensions above
Nut & Cage Material: 18-8 Stainless Steel
Thread Requirements: 6G
Finish: Per ASTM A380
| D | P | A | F | G | SQ HOLE | HOLE R |
|---|---|---|---|---|---|---|
| M4 | 0.7/1.6 | 10.0000 | 10.0000 | 4.8000 | 6.8000 | 0.5000 |
| M4 | 0.7/1.6 | 13.5000 | 13.5000 | 5.8000 | 9.5000 | 0.8000 |
| M4 | 0.7/2.1 | 13.5000 | 13.5000 | 6.5000 | 9.5000 | 0.8000 |
| M4 | 1.8/2.6 | 13.5000 | 13.5000 | 5.8000 | 9.5000 | 0.8000 |
| M4 | 2.2/3.1 | 13.5000 | 13.5000 | 6.5000 | 9.5000 | 0.8000 |
| M5 | 0.7/1.6 | 13.5000 | 13.5000 | 5.8000 | 9.5000 | 0.8000 |
| M5 | 0.7/2.0 | 13.5000 | 13.5000 | 6.0000 | 9.5000 | 0.8000 |
| M5 | 0.7/2.1 | 13.5000 | 13.5000 | 6.5000 | 9.5000 | 0.8000 |
| M5 | 1.8/2.6 | 13.5000 | 13.5000 | 5.8000 | 9.5000 | 0.8000 |
| M5 | 2.1/3.0 | 13.5000 | 13.5000 | 6.0000 | 9.5000 | 0.8000 |
| M5 | 2.2/3.1 | 13.5000 | 13.5000 | 6.5000 | 9.5000 | 0.8000 |
| M6 | 0.7/1.6 | 13.5000 | 13.5000 | 5.8000 | 9.5000 | 0.8000 |
| M6 | 0.7/2.0 | 13.5000 | 13.5000 | 6.0000 | 9.5000 | 0.8000 |
| M6 | 0.7/2.1 | 13.5000 | 13.5000 | 6.5000 | 9.5000 | 0.8000 |
| M6 | 1.8/2.6 | 13.5000 | 13.5000 | 5.8000 | 9.5000 | 0.8000 |
| M6 | 2.1/3.0 | 13.5000 | 13.5000 | 6.0000 | 9.5000 | 0.8000 |
| M6 | 2.2/3.1 | 13.5000 | 13.5000 | 6.5000 | 9.5000 | 0.8000 |
| M8 | 0.7/1.6 | 17.8000 | 18.0000 | 7.2000 | 12.8000 | 3.2000 |
| M8 | 1.8/2.6 | 17.8000 | 18.0000 | 7.2000 | 12.8000 | 3.2000 |
| M10 | 0.7/1.6 | 17.8000 | 18.0000 | 7.2000 | 12.8000 | 3.2000 |
| M10 | 1.8/2.6 | 17.8000 | 18.0000 | 7.2000 | 12.8000 | 3.2000 |
| D | P | A | F | G | SQ HOLE | HOLE R |
|---|---|---|---|---|---|---|
| 1/4UNC | 0.7/1.6 | 13.5000 | 13.5000 | 5.8000 | 9.5000 | 0.8000 |
| 1/4UNC | 0.7/2.0 | 13.5000 | 13.5000 | 6.0000 | 9.5000 | 0.8000 |
| 1/4UNC | 0.7/2.1 | 13.5000 | 13.5000 | 6.5000 | 9.5000 | 0.8000 |
| 1/4UNC | 1.8/2.6 | 13.5000 | 13.5000 | 5.8000 | 9.5000 | 0.8000 |
| 1/4UNC | 2.1/3.0 | 13.5000 | 13.5000 | 6.0000 | 9.5000 | 0.8000 |
| 1/4UNC | 2.2/3.1 | 13.5000 | 13.5000 | 6.5000 | 9.5000 | 0.8000 |
| 5/16UNC | 0.7/1.6 | 17.8000 | 18.0000 | 7.2000 | 12.8000 | 3.2000 |
| 5/16UNC | 1.8/2.6 | 17.8000 | 18.0000 | 7.2000 | 12.8000 | 3.2000 |
| 3/8UNC | 0.7/1.6 | 17.8000 | 18.0000 | 7.2000 | 12.8000 | 3.2000 |
| 3/8UNC | 1.8/2.6 | 17.8000 | 18.0000 | 7.2000 | 12.8000 | 3.2000 |
