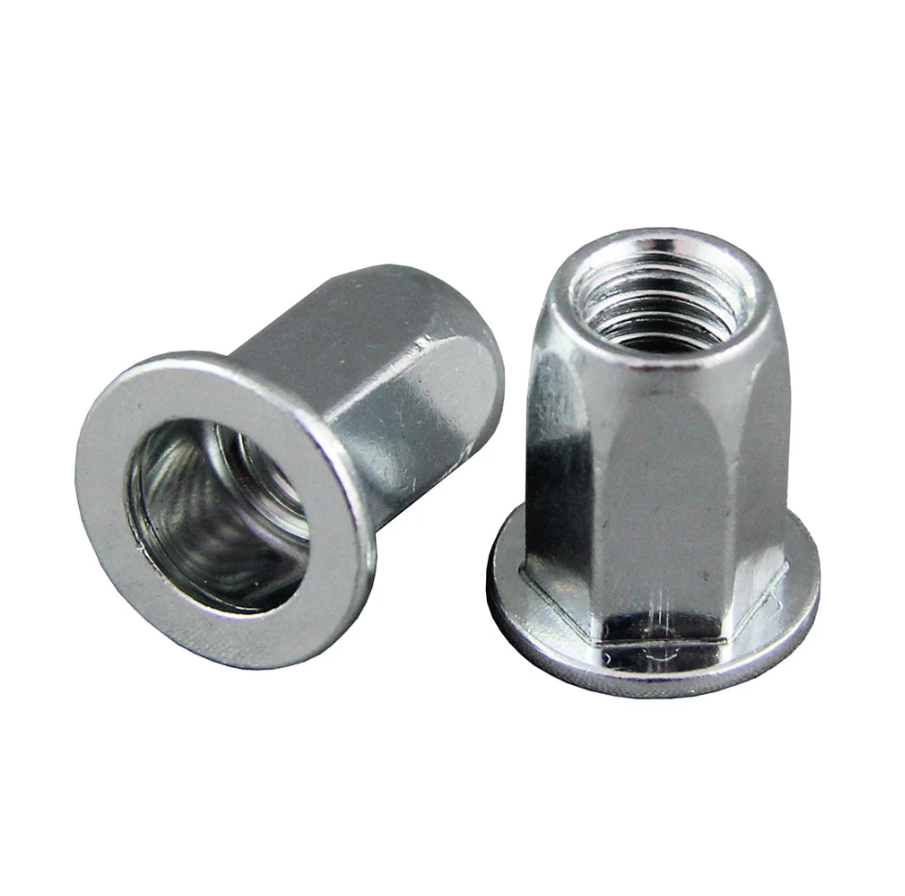

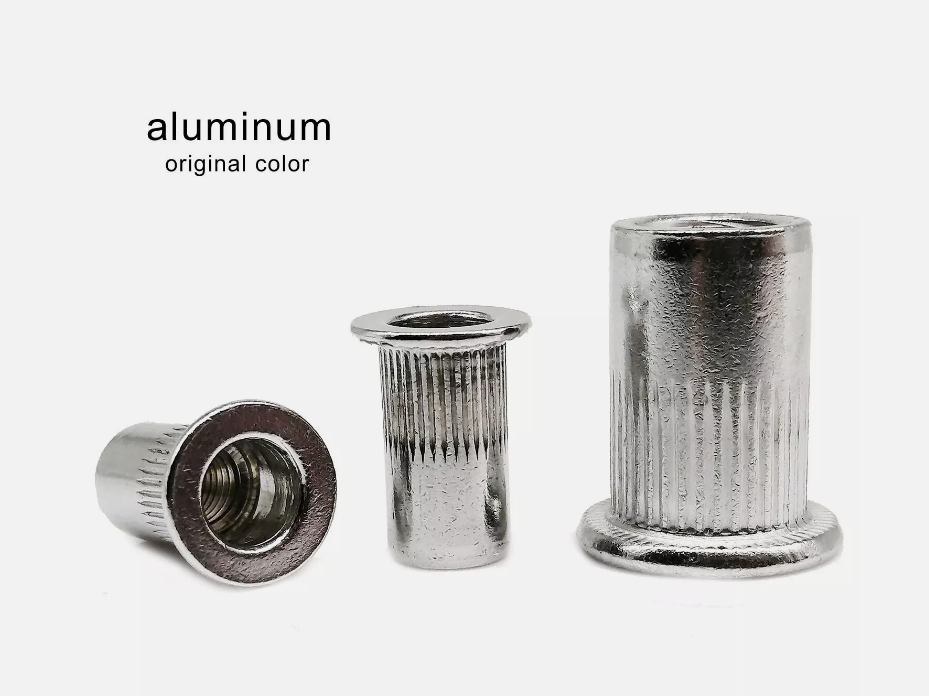

Rivet Nut

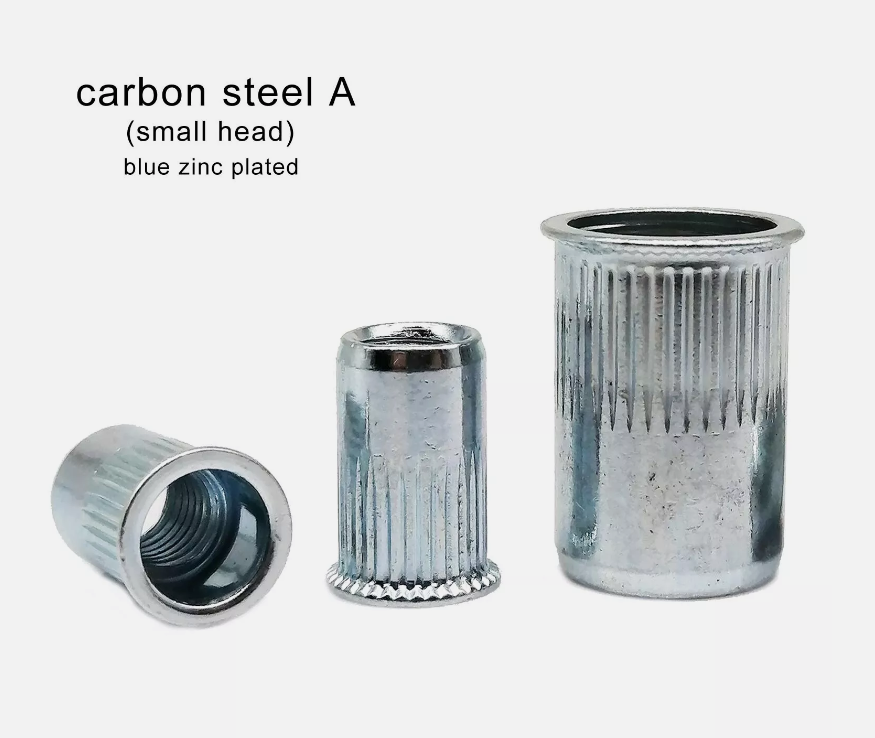

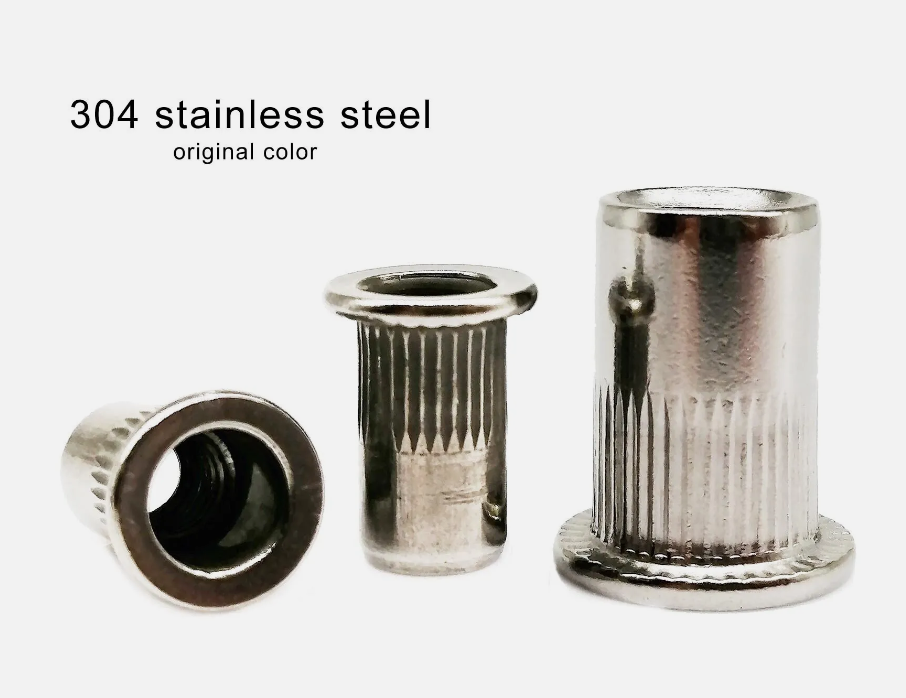

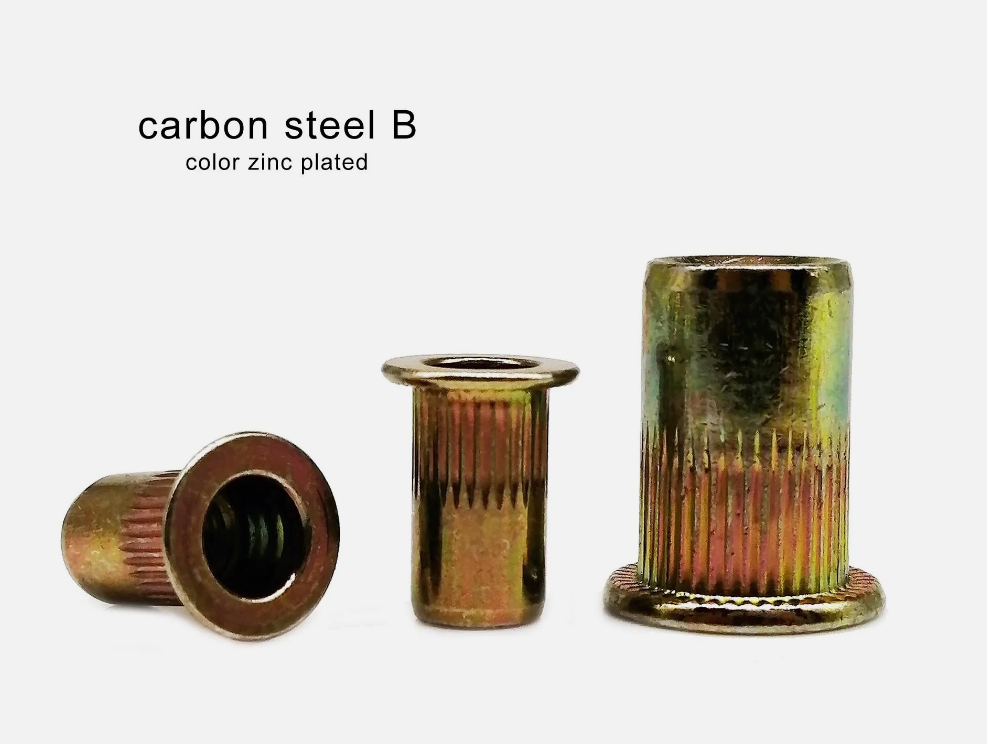

1. Material:Carbon stell, Stainless steel
SS304, SS316, SS316L, SS201, SS410
2. Grade: A2-70, A4-70, A4-80
3. SIZE: M3 to M52
4. Standard:
1. Material: Carbon stell,Q195,Q235,35K,45K, Stainless steelSS304, SS316, SS316L, SS201, SS410
2. Grade:4,8,10, Class 2,5,8. A2-70, A4-70, A4-80
3. SIZE: M3 to M52
| Thread Size | Part No. | Hole Size +0.1 / -0.0 | D (mm) +0.0 / -0.12 | L (mm) ± 0.4 | A (mm) ± 0.3 | H (mm) +0.15 / -0.05 | Grip Rang |
|---|---|---|---|---|---|---|---|
| M4×0.7 | FHBM4 | 6.1 | 5.9 | 10.7 | 9.0 | 0.9 | 0.5-2.5 |
| M5×0.8 | FHBM5 | 7.1 | 6.9 | 13.7 | 10.0 | 0.9 | 0.5-3.0 |
| M6×1.0 | FHBM6 | 9.1 | 8.9 | 16.0 | 13.0 | 1.5 | 0.5-3.3 |
| M8×1.25 | FHBM8 | 11.1 | 10.9 | 18.0 | 16.0 | 1.5 | 0.5-3.3 |
| M10×1.5 | FHBM10 | 13.1 | 12.9 | 21.0 | 19.0 | 2.0 | 0.5-3.5 |
| Thread Size | Pull-Out kN | Push-Out kN | Torque-To-Turn Nm | Maximum Torque Nm | P Max. |
|---|---|---|---|---|---|
| M4×0.7 | 6.3 | 2.2 | 4.5 | 5.1 | 5.60 |
| M5×0.8 | 8.8 | 3.6 | 8.6 | 7.9 | 7.91 |
| M6×1.0 | 14.4 | 5.3 | 11.9 | 12.4 | 8.69 |
| M8×1.25 | 15.0 | 8.0 | 25.0 | 32.0 | 10.61 |
| M10×1.5 | 19.7 | 9.2 | 45.2 | 45.0 | 15.97 |
P = Blind Side Protrusion
